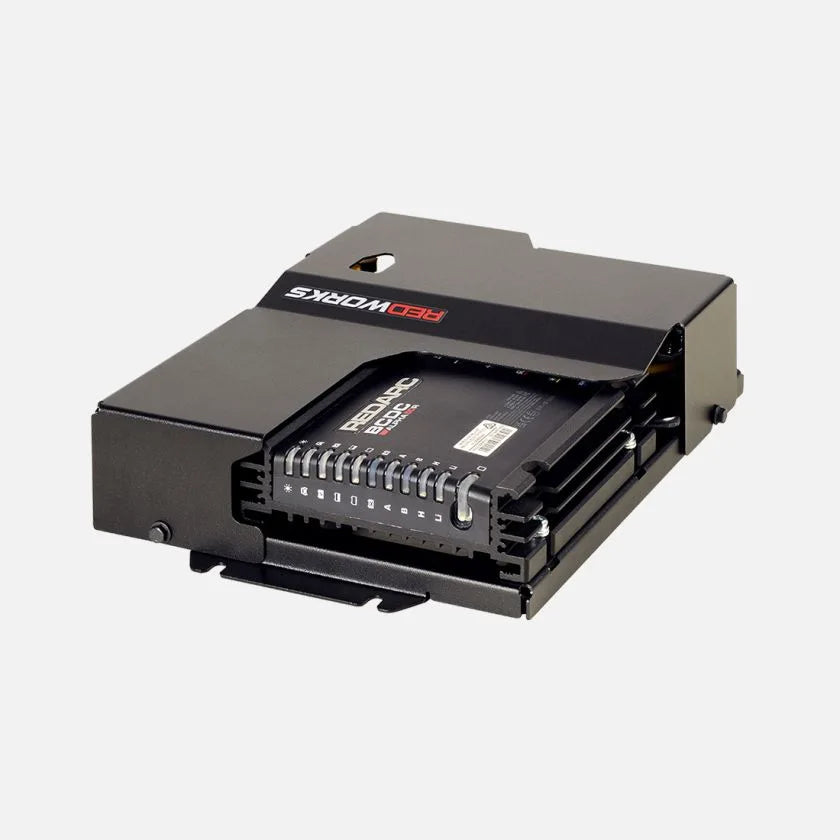

REDWorks Scout50 Power Panel

Overview

A compact pre wired dual battery system with full battery monitoring, the REDWorks Scout panels are ideal for weekend adventurers who want reliable power without the complexity. Whether you are keeping the fridge cold or the lights on after dark, Scout is your no fuss companion for simple and dependable power setups.

The Scout50 Features

• BCDC Alpha50 R 12V 50A DC Battery Manager
• Smart Battery Monitor

Intelligent Charge On The Go

Charge while you drive or anytime the sun is out with the most advanced DC charger in its class featuring a built in MPPT solar regulator. Green Power Priority gives simultaneous charging from solar and DC while prioritizing solar input to reduce load on your alternator.

Unlike standard DC chargers, the BCDC Alpha50 R constantly adjusts charge mode in real time to meet the needs of your battery. This maximizes efficiency, protects battery health and acts as a genuine battery management system.

Compatible with all common automotive battery types including heated and standard lithium. The onboard BCDC charger includes LED indicators for charge status and fault detection.

You can set input current limits to suit your system and protect your electrical setup. Perfect for modern vehicles including hybrids and EVs.

Scout50 also includes start battery charging and start battery recovery. It can recover a flat start battery in around fifteen minutes with the press of a button when solar is available.

Ready To Go Power

Connect your essentials in seconds with easy access Anderson plugs. Whether it is a fridge or a solar panel your system is ready immediately.

The Scout50 automatically tops up the start battery once the auxiliary battery reaches full charge.

Simply plug in portable or fixed solar to begin charging with the built in MPPT solar regulator and Green Power Priority technology.

Charge up to fifty amps directly from the alternator while driving so you always arrive with a full system whether heading to camp or the worksite.

The fifty amp Anderson output supports high draw accessories including large fridges compressors and electric jacks.

Advanced Monitoring

Stay fully informed with state of charge percentage time remaining and charger performance all accessed from your mobile device.

Monitor battery health and system activity in real time including remaining run time and current flow. The LED interface on the charger provides clear status and fault visibility.

Out Of Sight Out Of Mind

Designed for tight spaces the Scout50 fits behind drawers under seats or in areas where traditional systems will not go. Roughly the size of an A4 sheet it delivers up to fifty amps of combined DC and solar charging without consuming valuable space.

Installation Recommendation

REDARC recommends installation by a qualified auto electrician or technician. Use the REDNetwork installer locator on the REDARC website to find an approved installer.

Specifications

GTIN Barcode 9338628011568
Operating Temperature minus fifteen Celsius to sixty Celsius
Weight 3.7 kilograms
Height 76 millimeters
Width 235 millimeters
Depth / Length 330 millimeters
Warranty Two years
