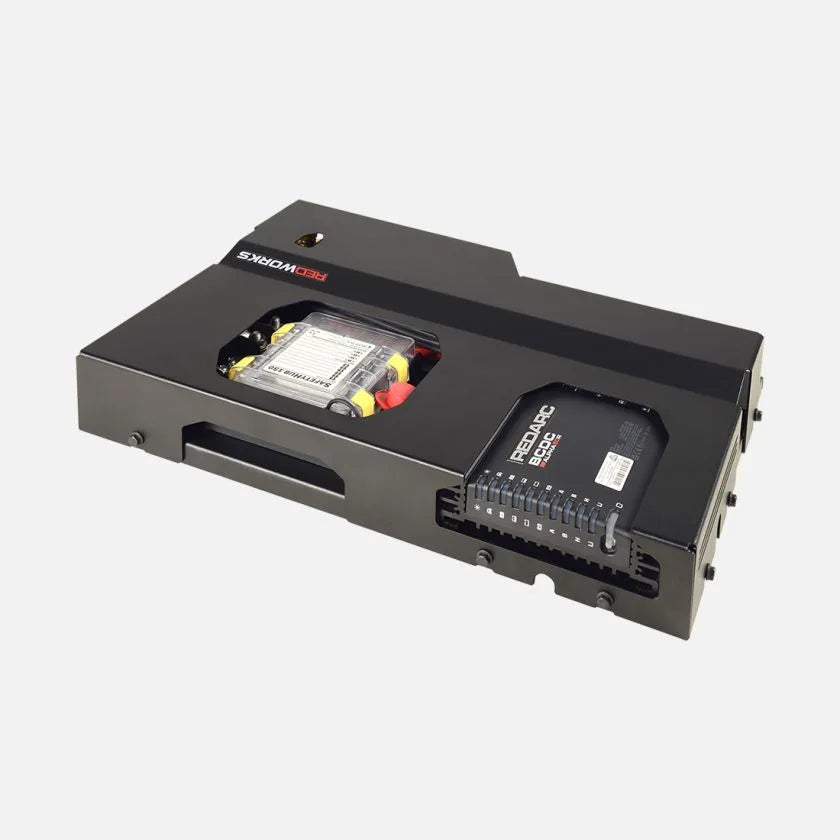

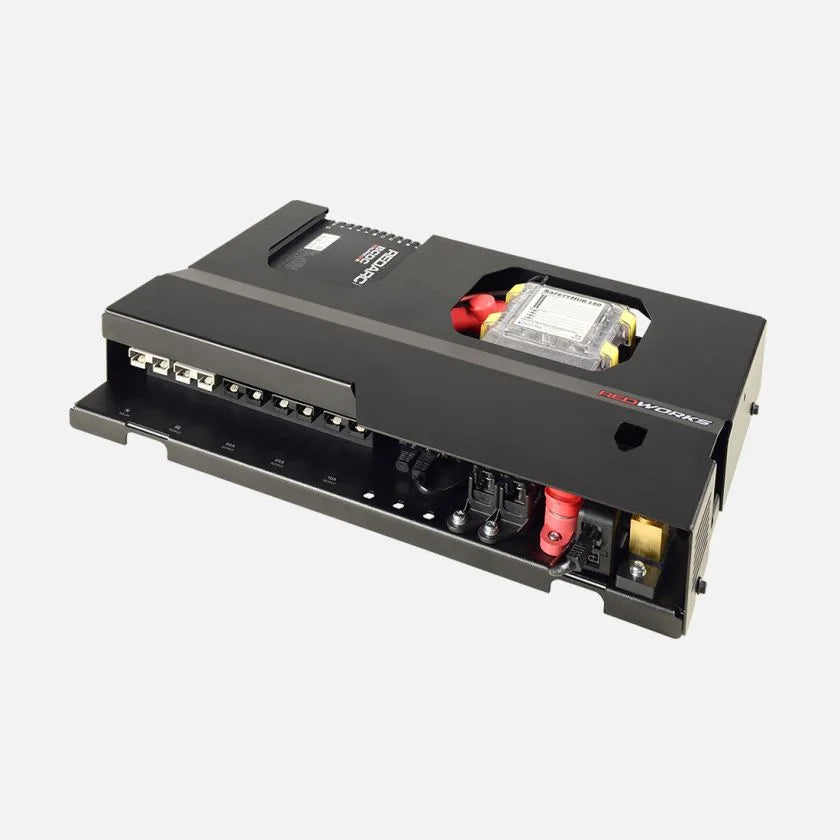

REDWorks Nomad50 Power Panel

Overview

A scalable dual battery system with built in battery monitoring, the REDWorks Nomad panels are designed for travelers who are adding more gear or staying off grid a little longer. Whether it is lights a compressor or creature comforts, Nomad gives you the flexibility to power more without complicating your setup.

The Nomad40 Features

• BCDC Alpha50 R DC Battery Manager
• Smart Battery Monitor
• Twelve Way Blade Fuse Block

Intelligent Charge On The Go

The ultra efficient MPPT solar regulator allows the BCDC to charge from vehicle and solar at the same time. Built in Green Power Priority will always priorities solar input to reduce alternator load and save fuel.

The BCDC Alpha50 R constantly adjusts charge mode in real time based on battery condition. This maximizes efficiency, protects battery life and works as a genuine battery management system.

Nomad is compatible with all common battery types including lithium and heated lithium. With over the air updates and adjustable input current limits it is ready for hybrid and electric vehicle use.

Start battery charging is built in. Excess solar can be used to maintain the start battery, and Start Battery Recovery can bring a flat start battery back to life in around fifteen minutes with a single button press.

Ready To Go Power

Connect essential gear in seconds using easy access Anderson plugs. Whether you are powering a fridge lighting or solar, the system is ready when you are.

The BCDC Alpha50 R automatically tops up the start battery once the auxiliary battery is full.

• Ten amp Anderson output for lower draw devices such as USB sockets 12V sockets lighting pumps or awnings
• Twenty five amp Anderson output for medium draw devices such as large fridges small ovens or compact compressors
• Fifty amp Anderson output for high draw devices including big compressors electric jacks or larger appliances

Advanced Monitoring

Monitor your battery system in real time with state of charge remaining run time and full current visibility delivered directly to your mobile device.

Using RedVision you can track performance from your smartphone with instant access to battery levels and system activity. The LED interface on the charger also provides clear status and fault indicators.

Built To Expand

Future ready and designed for growth, the integrated fuse block keeps wiring clean protected and simple to expand.

Featuring six thirty amp blade fuses and four one hundred amp MIDI fuses, this ten way fuse block supports higher power accessories and makes maintenance straightforward.

Specifications

GTIN Barcode 9338628011582
Operating Temperature minus twenty Celsius to sixty Celsius
Weight 7.1 kilograms
Height 79 millimeters
Width 308 millimeters
Depth / Length 465 millimeters
Warranty Two years
